Good neighbor. this Guiding principle

addresses the

public perception, stewardship

and the building’s site-scaping.

Cps energy was sensitive to the fact that their new

facility would be adjacent to a single-family residential

neighborhood. it was important that the facility design

respect the surrounding context in both scale and

appropriateness. heavy landscape elements were

placed between eCho and the residential area on the

north side to create an image of a park-like setting.

the service areas and equipment were evaluated and

screened to minimize acoustical concerns. the facility

itself is also set back over 100 feet from the property

line to provide a buffer zone between the

neighborhood and the building. the softer aesthetics

of the office facade (including a lower building height,

a café and an exterior courtyard) were located on the

north side facing the residential neighborhood. this

was done to provide a connection between the Cps

energy employees and the neighborhoods they serve.

4

responsible Corporate image. this Guiding

principle ensured

sustainability, marketability,

demonstrability, xeriscaping and display of

energy conservation.

leed Gold certification was a key goal for the eCho

project. to support this goal, special consideration was

given to the mechanical cooling system selected.

Multiple hvaC systems were studied to determine

which one made the most sense from both reliability

and energy efficiency standpoints.

syska’s team developed a computational fluid dynamic

model (Cfd) to find the optimal system layout to cool

the racks on the computer room floor and aid low-

voltage and Mep systems coordination. this led to the

specification of an efficient back-of-rack, refrigerant-

based cooling system. the system’s back of rack heat

extractors have variable speed fans that modulate to

control the rate of heat transfer between the air and

the refrigerant. this unique solution provides a “room

neutral” design where the discharge air is cooled back

to room temperature prior to re-entering the space.

the refrigerant to water heat exchangers were

designed to be installed outside of the critical space,

so that only the refrigerant piping and back of rack

units are located within the critical space, minimizing

the coordination needed to support all the

infrastructure. in addition, the design of the system

allows a single refrigerant pumping unit to be taken

down for maintenance while the cabinets served by

this unit can continue to operate through alternate

feeds from the adjacent pumped refrigerant row.

through energy model simulation, the selected hvaC

system results in ~13% energy savings over the

ashrae 90.1 baseline case of a packaged direct-

expansion system. this, coupled with the it

virtualization energy savings of ~39%, produces a very

energy efficient system that matches Cps energy’s

charge to minimize energy consumption and maximize

energy efficiency.

WWW.7X24EXCHANGE.ORG

THE 4 GUIDING PRINCIPLES

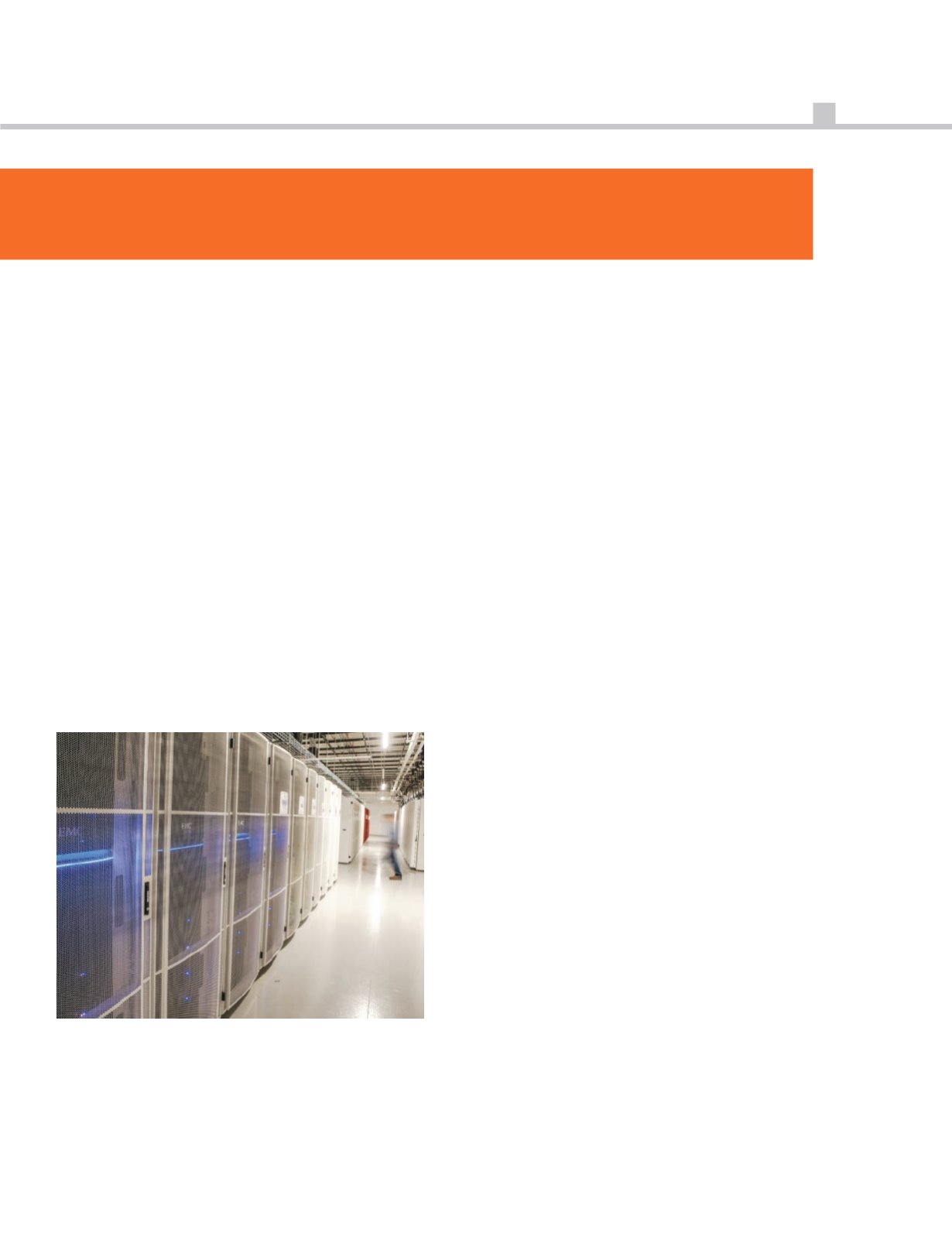

Typical Cabinet Placement. No raised floor and open plenum

above.
